10 inches multi aluminium log heating furnace aluminum multiple billet furnace with hot shear

3.5 inch to 16 inches Multiple aluminium log preheating furnace aluminum multi billet furnace with hot shear

Energy-saving burner (equipped with heat recycling system)

Uniformed and precise heating temperature

High product qulified rate

Origin: Foshan, China

Delivery time: 90 days

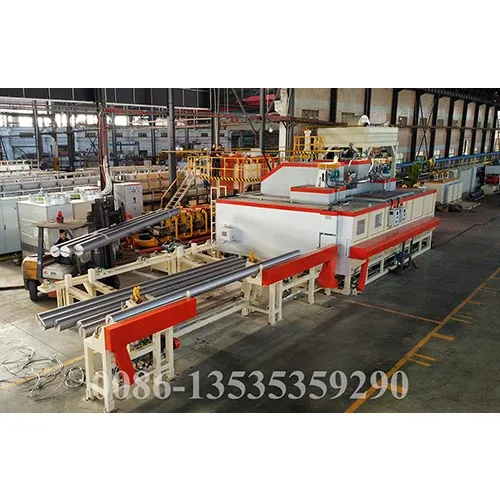

The aluminum log preheating furnace with hot shear machine is a new type of aluminum billet heating and shearing furnace designed to solve the deficiencies of the old short billet heating furnaces. The log heating furnaces are divided into single log heating and shearing furnaces and multiple log heating and shearing furnaces. The log hot shearing furnace has a sealed furnace chamber, good insulation, and therefore has high energy efficiency. The billet length can be adjusted at any time, which is convenient for production scheduling. Moreover, it avoids the waste of raw materials that caused by the old-style furnaces that use pre-cut aluminum billet.
The multiple billet hot shearing furnace is suitable for various different fuels such as diesel, natural gas, liquefied petroleum gas. The multi billet furnace can load and heat multiple aluminum logs inside chamber at the same time, the log preheating time can be longer and the heating effect is more thorough which has a certain homogenization effect that can imporve the extrusion speed and product surface quality. Since the furnace release to the market, it has been highly welcomed by customers and widely adopted.

Parameters

Machine nameMulti log/billet heating furnace with hot shear
Log diameter(mm)Φ80mm - 400mm
Log length (mm)5000 - 8000mm regular 6000mm
Log number in chamberRegular 15pcs, can be customized
Billet cutting length (mm)100 - 1200
FuelNatural gas,LPG, diesel
Combustion systemEnergy-saving burner (equipped with heat recycling system)
Fuel consumption18-23 CBM gas/ton aluminum,
22~27kg diesel/ton aluminum,
different alloy no. and temperature varies
Initial heating time (h)3.5 - 4.0(from cold furnace to work temperature)
Heating temperature (°C)450 - 560
Temperature measuringThermocouple 3 sets
Temperature controlPLC and temperature control instrument
Hot shear typeVertical or horizontal
Shearing cutting force40-120Ton
AdvantageNo oil leak, long service life, energy saving, easy operation, uniformed and precise heating temperature, high product qulified rate

Project

Installation and commissioning

On site installation and commissioning

We shall dispatch our most experienced technicians to perform and guide the on site installation and commissioning in our client's plant; provide operation, production and maintenance training.

Warranty

Whole machine 1 year. Except wear parts.

Contact us

Phone/whatsapp:0086-13535359290

Email: kelvmachine@sina.com

Please tell us what aluminum extrusion product you plan to produce, what is the monthly/annual yield… the more details you provide, the more precise our technical proposal will be. Please feel free to contact us.
