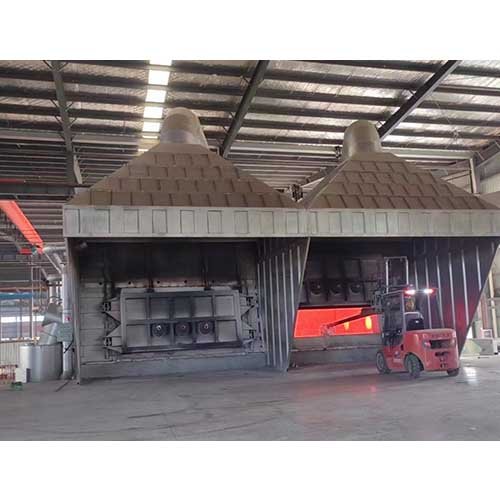

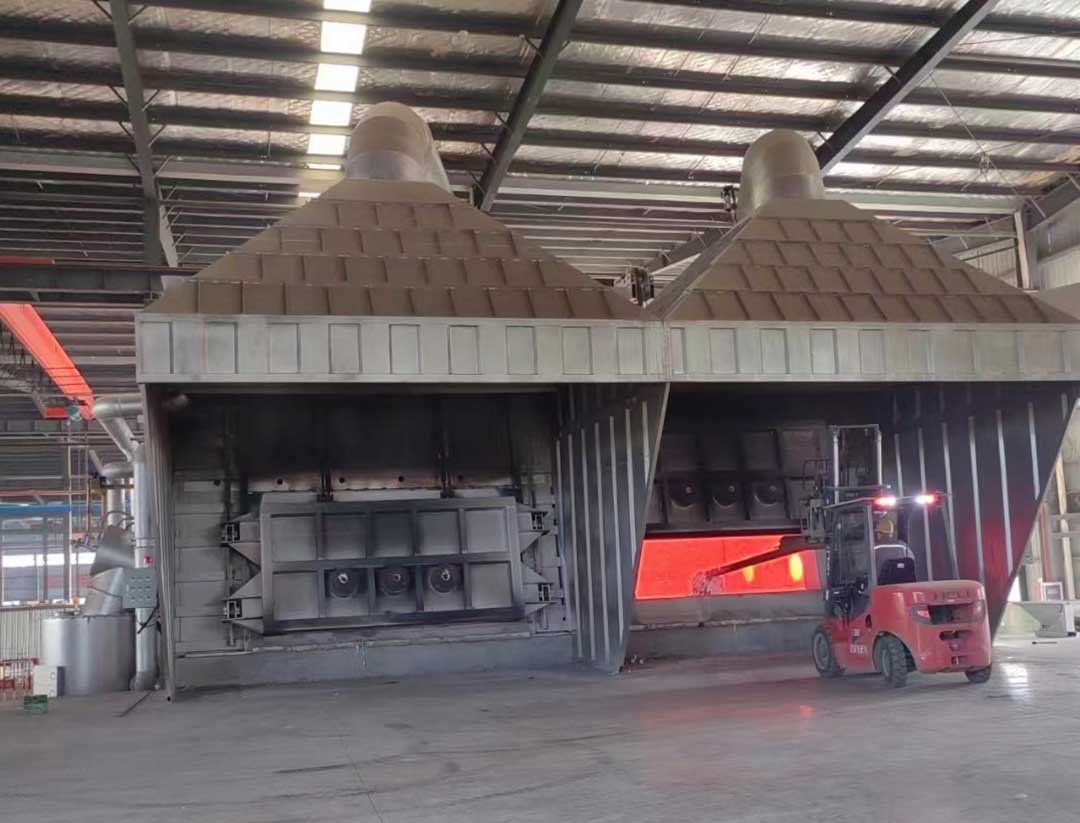

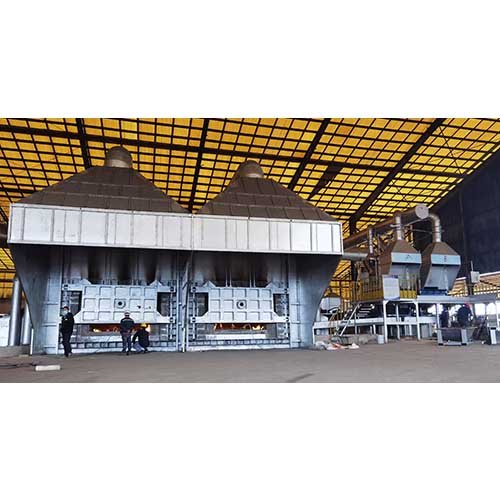

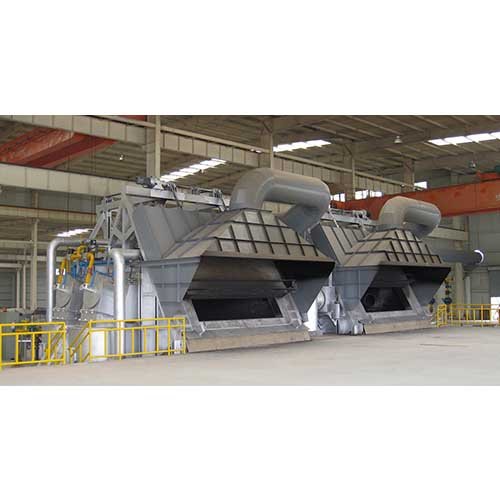

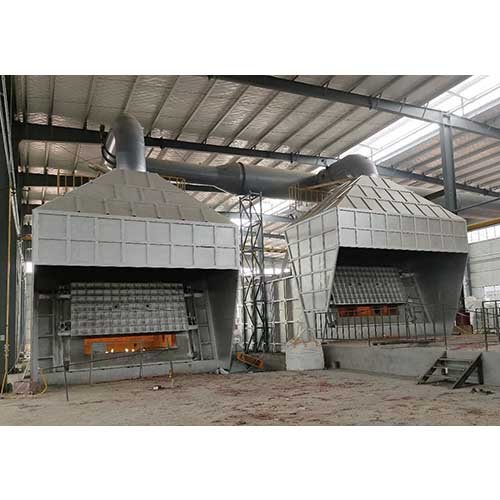

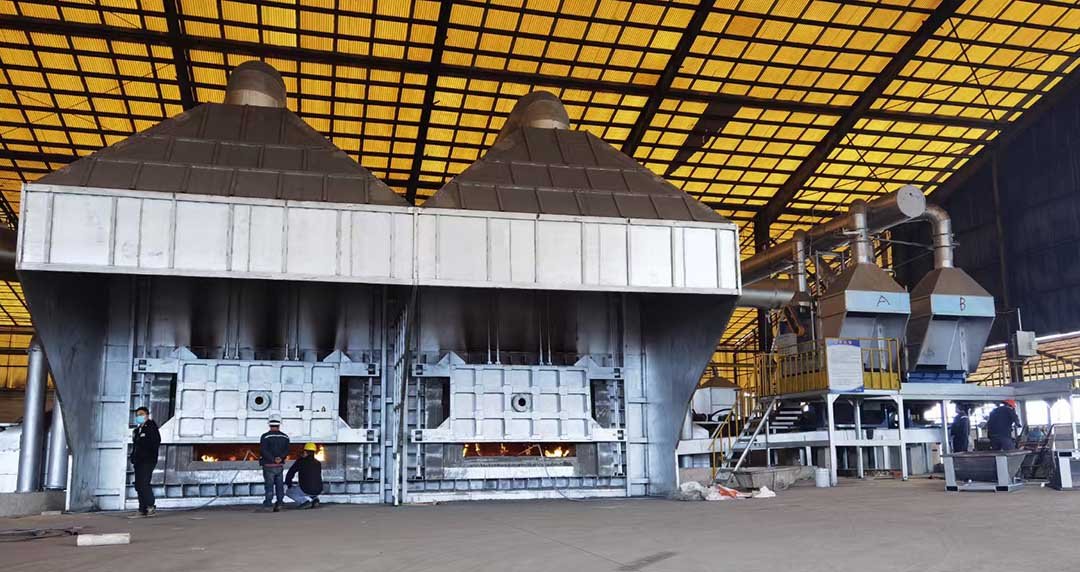

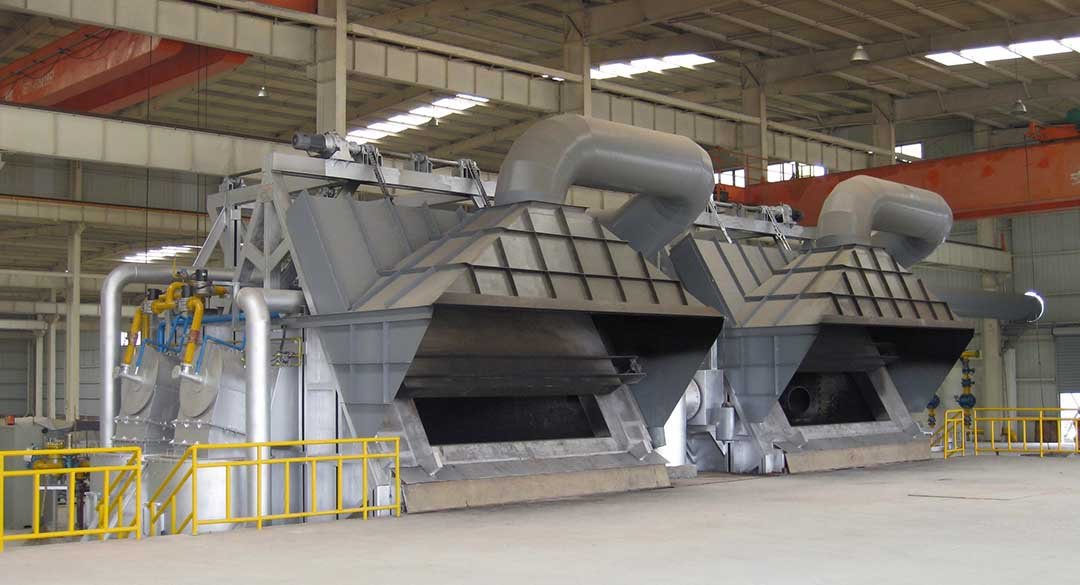

Double chamber dual-chamber aluminum melting furnace

Double chamber dual-chamber aluminum melting furnace

1, Low burning loss, compared to traditional furnaces, the recovery rate is 2% – 3% higher or even more

2, Energy-saving combustion system

3, No smoke overflowing to the workshop, the working environment is better

Delivery time: 90-270 days

Double chamber dual chamber aluminum melting furnace

Features

1, The preheating, drying and melting of waste aluminum is not directly impacted by combustion flame. The unique dual-chamber structure ensures that the aluminum material melts efficiently in the high-temperature liquid aluminum, significantly reducing burning losses. Compared to traditional furnaces, the recovery rate is 2% – 3% higher or even more.  We specifically design it for the high-temperature melting of lightweight aluminum materials such as aluminum scrap, aluminum can, water tank aluminum, cast and extrusion aluminum, it is particularly suitable for waste aluminum recycling production.

2, During the entire melting process, the molten liquid is circulated by circulating mixer, both temperature and composition are uniformed.

3, We use a new energy-saving combustion system, exhaust gas heat is recovered, therefore higher energy efficiency.

4, The waste aluminum is added in a sealed system, preventing smoke from overflowing to the workshop. So the working environment is better.

Technical parameters

Production capacity20 - 150 tons
Furnace doorPerpendicular/slope
Furnace typeStationary
Melting rate2 - 8 tons of aluminum per hour
Pressure65-100KPa
Temperature accuracy±5°C
Gas consumption range≥ 52 cubic meters per ton aluminum
Maximum working temperature1050°C
Maximum control temperature1100°C
