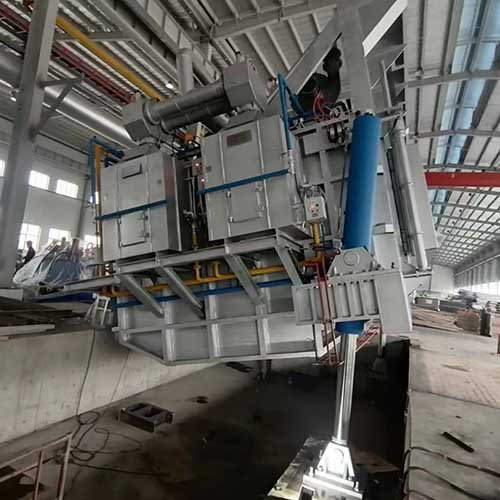

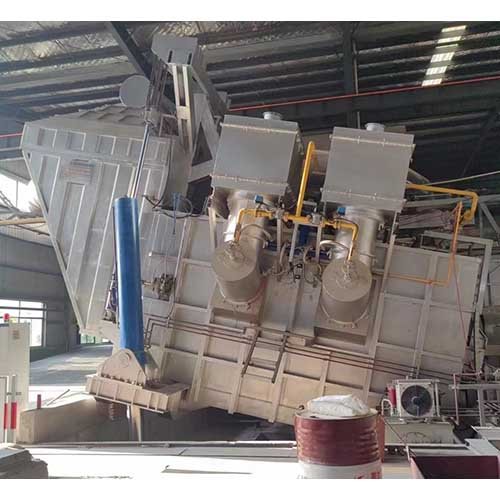

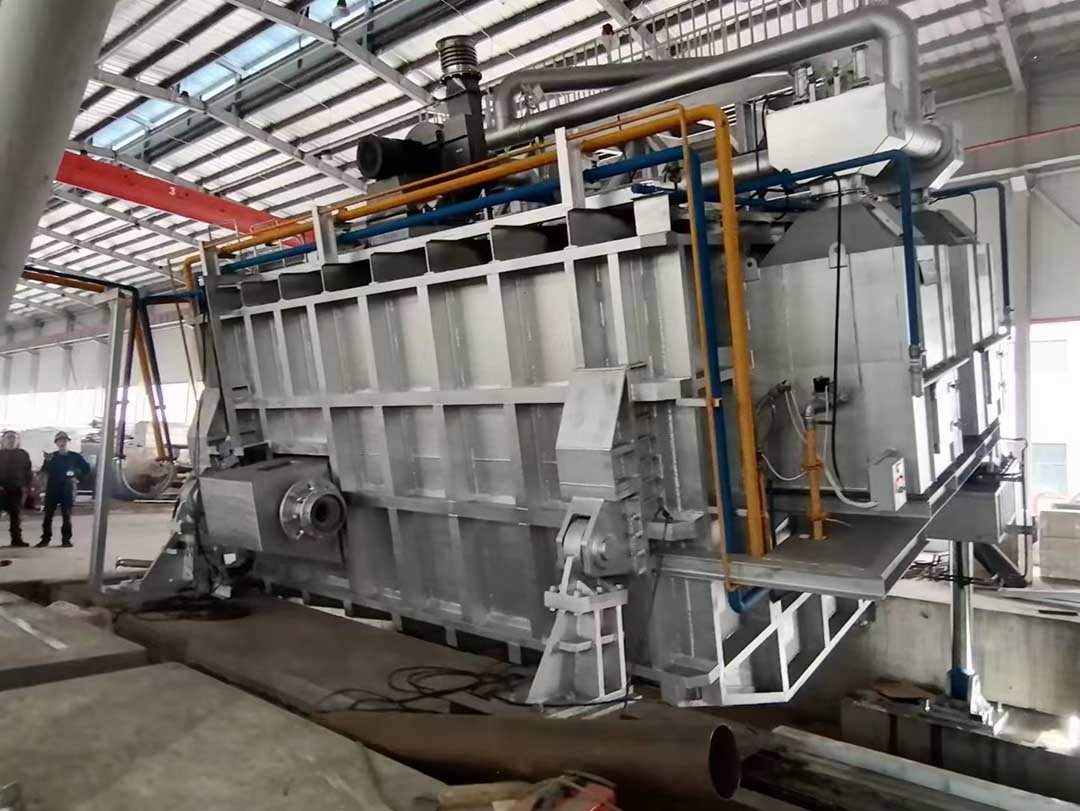

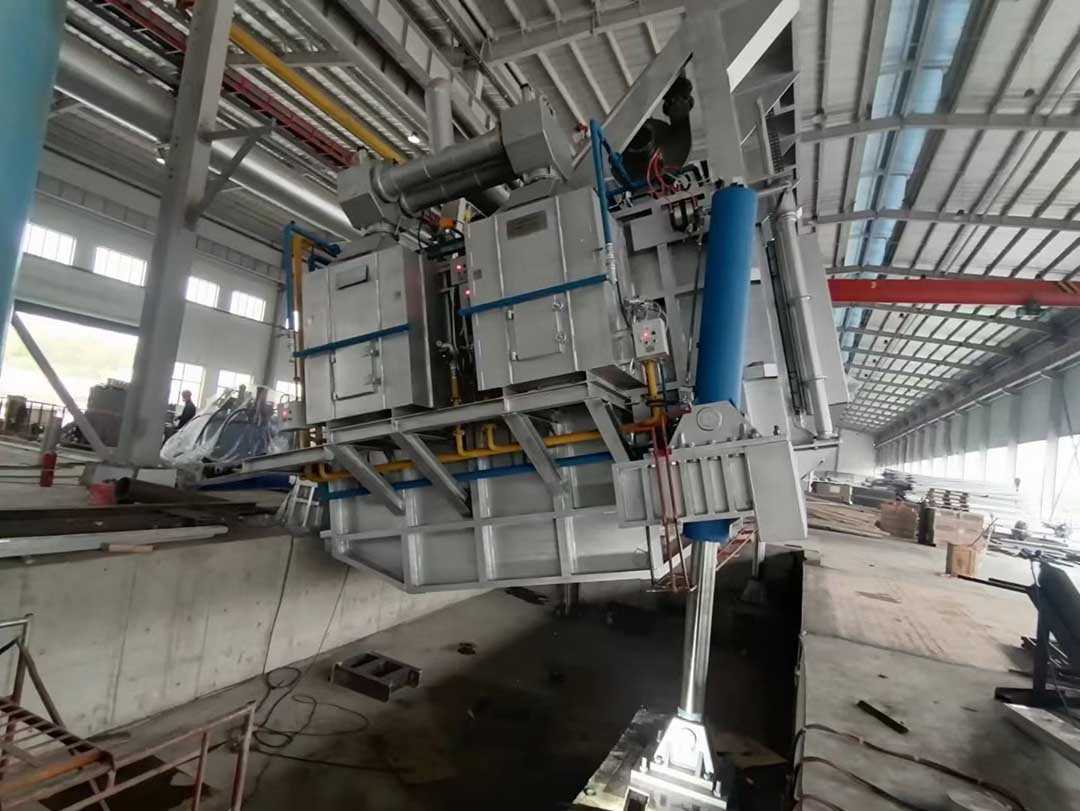

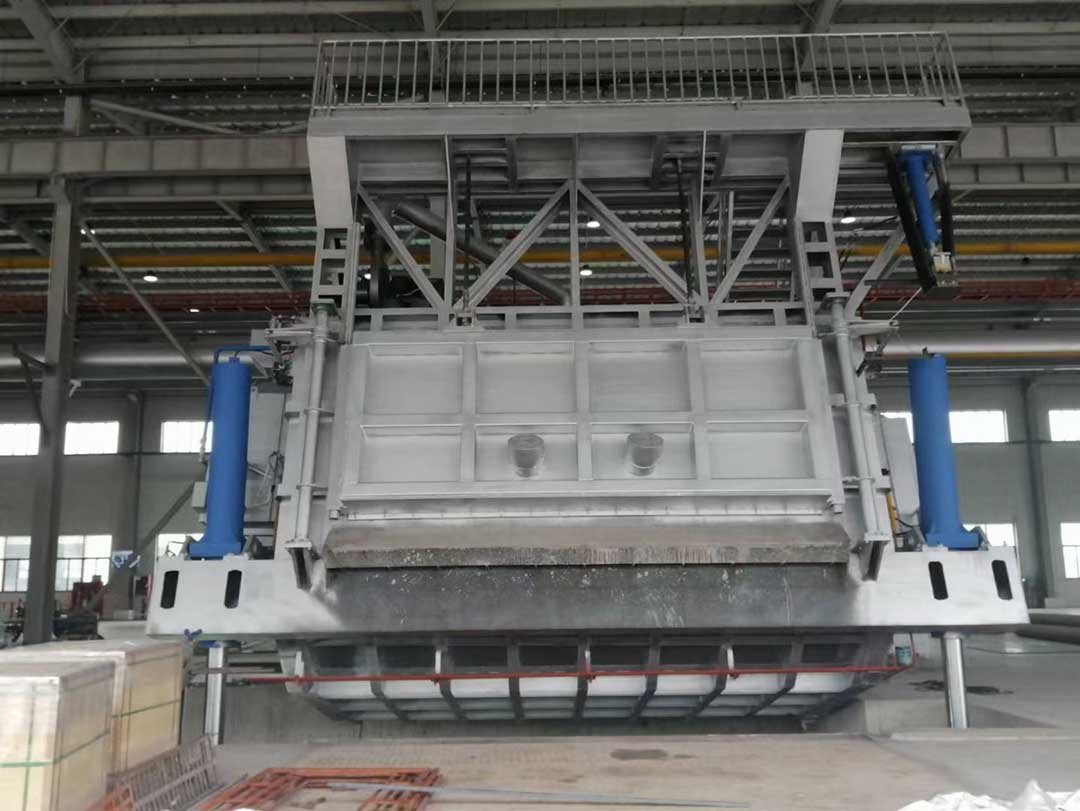

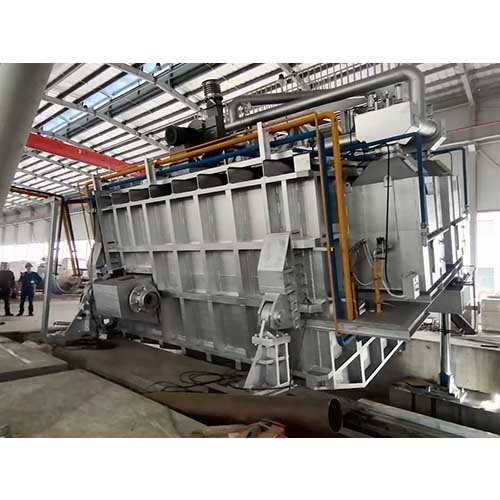

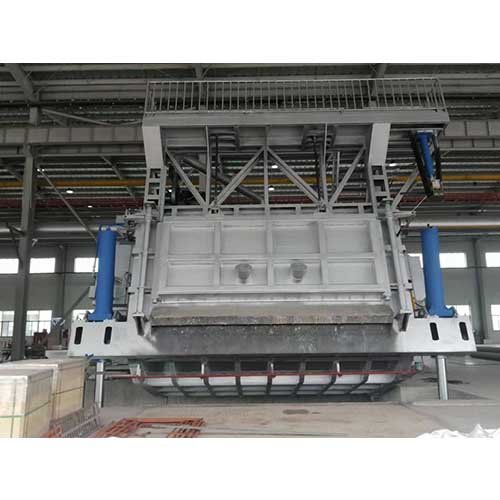

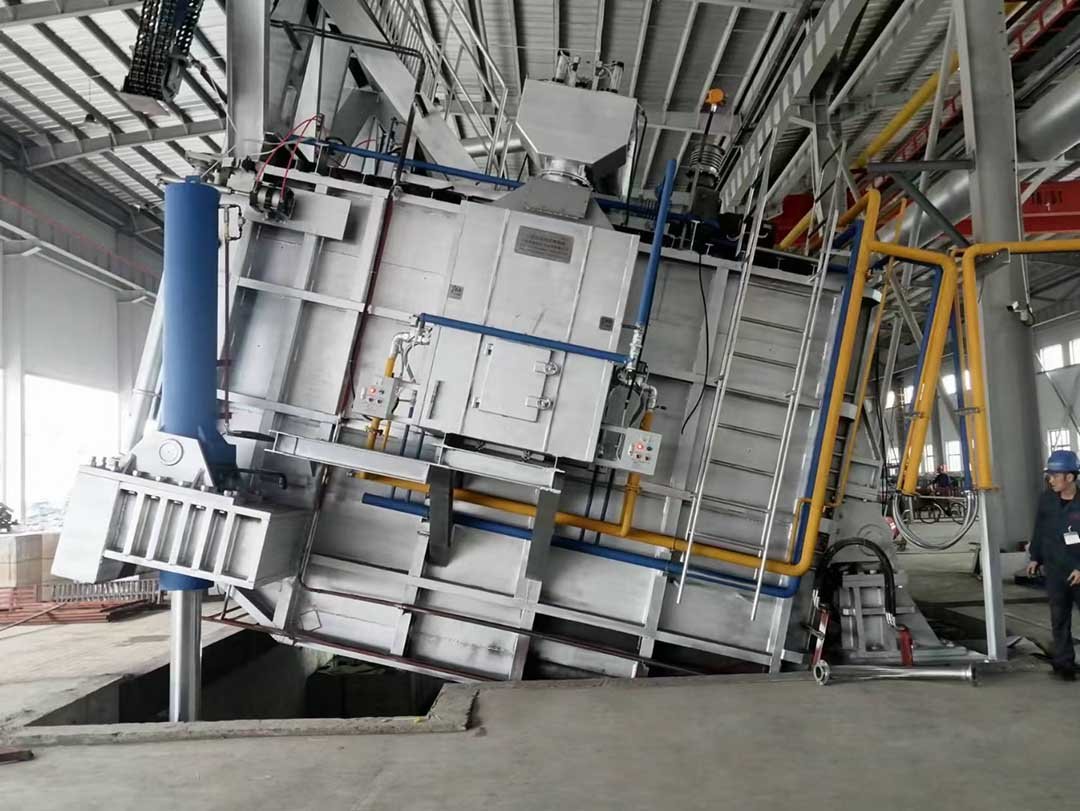

Tiltable aluminum melting/holding furnace
The tiltable aluminum melting/holding furnace is for high-end aluminum alloy log/sheet /strips. By precisely controlling the casting process of the liquid aluminum, it can effectively improve product quality and production efficiency, reduces risks and prevents explosion accident.
Features
- It can control the liquid aluminum flow and can measure its weight in the furnace with sensors, so the aluminum alloy composition can be strictly fulfilled . When it used as hold furnace, it can accurately control the aluminum liquid level during the casting process.
- Single side or double sides tilting are optional.
- Easy to operate
- Can clean the furnace and change the alloy type fast.
Technical parameters
| Production capacity | 15 - 60 tons |
|---|---|
| Furnace door | Tiltable |
| Furnace type | Tilt |
| Melting rate | 4 - 8 tons of aluminum per hour |
| Pressure | 65-100KPa |
| Temperature accuracy | ±5°C |
| Gas consumption range | ≥ 52 cubic meters per ton aluminum |
| Maximum working temperature | 1050°C |
| Maximum control temperature | 1100°C |
| Fuel type | Natural gas, heavy oil |
| Melting pool structure | Refractory brick/semi castable/full castable |
